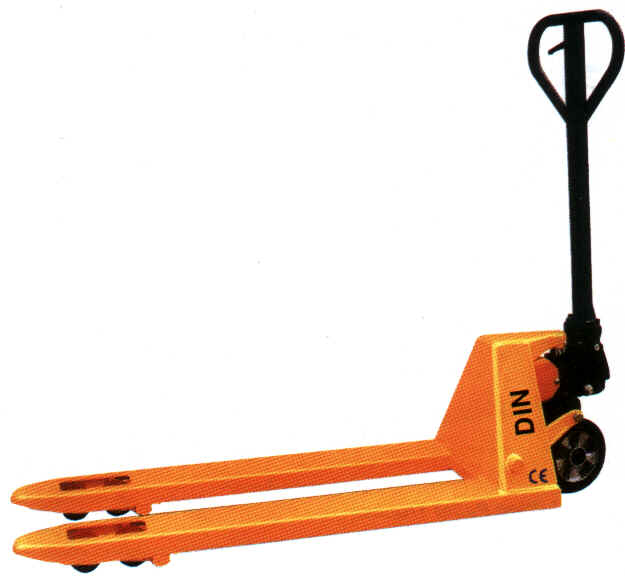

| DIN HAND PALLET TRUCK |
A build in overload value and totally sealed hydralic pump,seals of hydralic pumps from Germany
Heavy duty single piece "C" section forks for greater strength and durablity,super strong frame can load Max 300kg
Two nylon entry and exit rollers prevents physical exertion .
Load roller : Single or Tandem Nylon ,Polyuethane .
Steering wheel : Nylon, Polyurethane, Rubber.
Model |
DIN 2S | DIN 2B | DIN 2.5S | DIN 2.5B | DIN 3S | DIN 3B |
| Capacity (kg) | 2000 | 2000 | 2500 | 2500 | 3000 | 3000 |
| Max Fork Height (mm) | 200(or 190) | 200(or 190) | 200(or 190) | 200(or 190) | 200(or 190) | 200(or 190) |
| Min Fork Height (mm) | 85 (or 75) | 85 (or 75) | 85 (or 75) | 85 (or 75) | 85 (or 75) | 85 (or 75) |
| Fork Length (mm) | 1150 | 1200 | 1150 | 1200 | 1150 | 1200 |
| Width Overall Forks (mm) | 540 | 680 | 540 | 680 | 540 | 680 |
| Individual Fork Width(mm) | 150 | 150 | 150 | 150 | 150 | 150 |
| Load Roller Diameter(mm) | dia82or72 | Nylon,Polyurethane | ||||
| Steering Wheel Diameter (mm) | dia200 or 180 | Nylon,polyurethane, | Ribber | |||
| Net Weight (kg) | 75 | 78 | 77 | 80 | 85 | 88 |
